09 December 2010

What I've been up to

I was playing Mr. mom Thanksgiving night/ Black Friday morning since the wifey was at WM at 10pm to get a jump start on the holiday shopping thing she loves to do every year.  The kids where in bed asleep, and I was in the shop on the computer when I received a Tweet from @RenaissanceWW announcing a Black Friday sale on membership to The Hand Tool School 20% off.  How could I pass this up???? At about 45 minutes after midnight on Black Friday, I made my purchase.  I had been wanting this since I first heard about it.  I didn't exactly have all of the tool kit, wasn't sure that I would have the time, it is a pretty large up front cost for my small wood working budget, etc... But with a discount that big, and with @AdamKingStudio always telling everyone to just jump in and start now, that's what I did.  I'm obviously a little behind, but I am catching up steadily.  So, like the adage says, no pictures it didn't happen.

I strongly urge you to check out The Hand Tool School.  As of yet, I have not been disappointed, and I don't expect to be any time soon.

As always feel free to post any questions or comments in the section below.  You could always contact me via Facebook or Twitter via the links on this page.
Until next time....

08 December 2010

Band Saw Blades

My wonderful wife was at an auction this summer and got the chance to bid on a lot of two band saws.  She ended up getting both for $25 and immediately sold one for $15 plus the guy offered to drop the other one off for her.  When she called and told me I was a bit skeptical of a $10 band saw.  When I got home I was pleasantly surprised by what I saw.

An older Craftsman 10" band saw on a stand.  Not a giant, not a high priced ubber accurate saw, but a really good deal for $10 delivered.  After a little research I discover the blade length required is 72 5/8".  No problem.  A quick check of the local big box, nothing.  Check of the local hardware stores, nothing.  Check of the local Sears outlet, nothing.  Check of the big Sears 45 miles away, nothing.  What to do now?  The local big box has a 93" blade for $10 so I thought I would try to weld my own.  After several different attempts and trying different bonding agents, I finally come across a method that works pretty well for me.

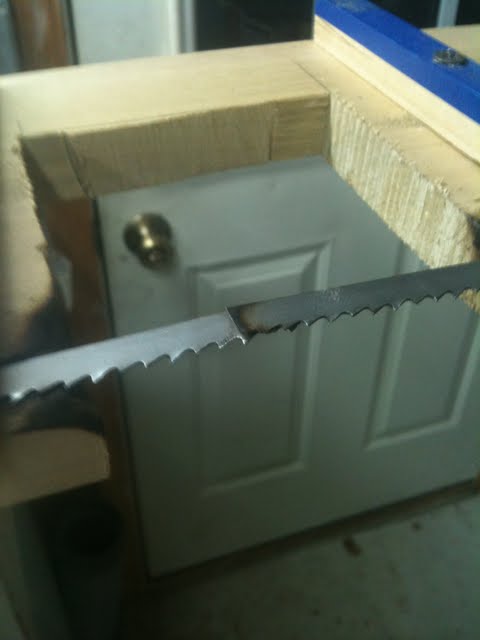

It all starts with a little jig I made to hold the blade.  It is really just a board that I used a shoulder plane to make a rabbit in.  Then I made a couple of hold downs to screw to it and cut a hole to do the actual heating part in.

I cut the blade to length and make sure the ends are nice and square.

Then I use the belt sander to taper the ends forming what is essentially a scarf joint.  I shoot for the taper to be about as long at the blade is wide.  I then put one end in the jig and wipe it with acetone.

I then mount the other end overlapping the tapered ends fresh off the belt sander and wiped with acetone.

The key to the whole operation is the right amount of heat and the proper bonding agent.
I got this blue welding rod from my step dad.  We aren't really sure it's exact components, but we know it has a fairly high silver content.  The silver content is important because silver is strong enough to hold the joint but melts at a low enough temp to use a standard propane (or MAPP gas) torch.
I melt a little of the coating off of the welding rod onto the blade to act as flux.

Then it's time for the fire.

If you notice at the end of the video you see me pour sand onto the blade.  This is an experimental process for me.  With my method of welding, I have never had a blade break at the weld.  They have all broken beside the weld.  Annealing is a process of heating steel to a specific temperature and cooling it in a specified manner to restructure the metal for the properties you want.  In the case of a band saw blade, you want strong and springy, not brittle.  This has been my issue.  The area beside the weld always seems to be more brittle and less "springy" than the rest of the blade.  The sand was heated to about 190*F and then poured over the weld as fast as I could after removing the heat.  Sand holds heat for a long time.  I hope slowing the cooling of this very thin steel will help with the brittleness.  It did seem to help, although not as much as I would like.

After this I clean the weld up a big and install it on the saw.

Hope this helps anybody out who may be looking into this as an option for their band saw, or for repairing blades when you’re in a bind and break yours without a replacement.

As always feel free to comment in the section provided below or contact me via Facebook or Twitter via the links on this page.

Until next time....
